Our Panel Mounting Ball Valves bring the same reliable quarter-turn isolation found across our ball valve range into a compact form factor designed specifically for panel installation. Rather than being built for direct inline piping, these valves are configured for mounting onto flat panel surfaces, control cabinets, and instrumentation racks where multiple valves need to align cleanly and operate without interfering with neighbouring components.
The internal mechanism stays consistent with the rest of our ball valve family machined precision, tight tolerance control, and individual pressure testing before dispatch while the external configuration is adapted specifically for panel-based use.

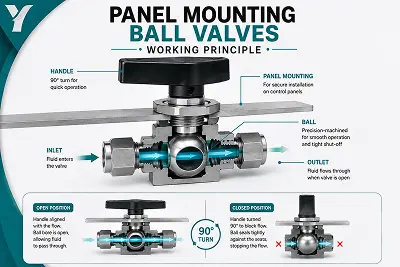

Like every ball valve in our range, the panel mounting variant uses a precision-machined ball with a bored-through passage, seated between two sealing surfaces inside the valve body. Rotating the handle 90 degrees moves the ball between a flow-aligned open position and a fully blocked closed position, with the seats compressing against the ball to maintain a tight seal in the closed state.
What's engineered differently here is the mounting arrangement and handle orientation, both adapted so the valve integrates cleanly into a panel layout allowing operators quick, unobstructed access to the handle even when several valves are mounted close together.
Panel-mount, compact form factor
Quarter-turn rotating ball with bored-through passage
Machined from selected material grades suited to instrumentation service
Individually pressure-tested before dispatch
Manufactured under ISO 9001:2015 certified processes
Pressure and temperature ratings depend on material grade our team can confirm exact specifications for your panel design.
Panel design often comes down to fitting a lot of function into very little space, and a valve that doesn't mount cleanly or align with its neighbors becomes an installation headache fast. We manufacture our panel mounting ball valves to consistent dimensional tolerances specifically so they integrate into your panel drawing the way it was designed without last-minute spacing adjustments or handle clashes once installation begins.
In case your panel mounting is governed by certain space limitations or valve groupings, it might be useful to discuss it with our engineers prior to finalizing your design. It will help to get everything right during the planning stage, not on-site.
It's configured specifically for mounting onto flat panel surfaces and control cabinets, rather than direct inline piping installation.
